Hydrostatic Spherical Couplings 液壓球形聯軸器

Overview 總覽

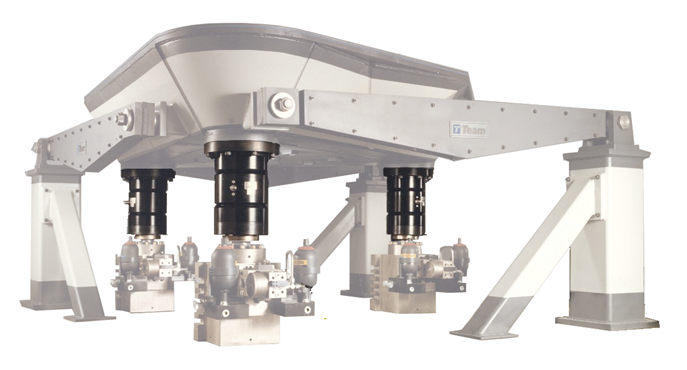

Team Corporation's Hydrostatic Spherical Couplings transmit tensile and compressive forces while allowing angular misalignment. Hydrostatic Spherical Couplings are used in applications for multi-axis vibration, structural fatigue testing, and any application where angular movement is required. Each coupling connects the vibration system (Hydraulic or Electrodynamic) to the table / test article, protecting the system from damage due to misalignment or angular motion.

Single and Double pivot couplings are available, in either 0.5 degree or 6 degree configurations. Our double pivot couplings allow for angular and lateral misalignment. Each spherical surface is hydrostatically lubricated for extremely high stiffness, zero backlash, and infinite life.

Team Corporation的靜液壓球面聯軸器在傳遞拉力和壓力的同時允許出現角度偏差。靜力球面聯軸器用于多軸振動，結構疲勞測試以及需要角運動的任何應用。每個聯軸器都將振動系統（液壓或電動）連接到工作臺/測試件，以防止系統因未對準或角度運動而損壞。

單和雙樞軸聯軸器有0.5度或6度配置。我們的雙樞軸聯軸器可實現角度和橫向未對準。每個球形表面都進行了靜液壓潤滑，以實現*高的剛度，零背隙和無限的使用壽命。

Features 特征

• Hydrostatic Bearing Surfaces 靜壓軸承表面

• +/- 0.5 Degree or 6.0 Degree Angular Rotation +/- 0.5度或6.0度角旋轉

• Extremely High Stiffness　*高的剛度

• Zero Backlash 零反沖

• Zero Wear(When oil is maintained to ISO 15-13-10 standards) 零磨損(當油保持ISO 15-13-10標準時)

Applications 應用領域

• Multi Axis Test Systems 多軸測試系統

• Co-Planar Actuators 共面驅動器

• Fatigue Test Sytems 疲勞測試系統

• Custom Test Rig Configurations 定制測試臺架配置
