HydraBall 液壓球頭

Overview 總覽

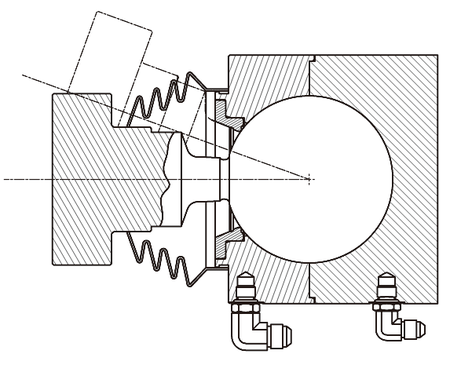

The Team Corporation HydraBall is a hydrostatic bearing, oil-supported ball joint with non-contacting surfaces. Using the HydraBall instead of conventional rod ends saves time and improves test results because no greasing or adjustment is required. The Hydraball provides a zero backlash, zero friction coupling that offers an extremely stiff direct load path. HydraBalls are a low-noise, cost-effective and virtually maintenance-free replacement to conventional rod ends.

The HydraBalls' smaller package and revolutionary design eliminates pin shear associated with typical clevis pin assemblies. There are no high-pressure seals to wear out or cause friction to compromise test results. The Team HydraBall requires only 0.2 gpm (.751 lpm) of oil at 3,000 psi (205 Bar).

Team Corporation 公司的HydraBall液壓球頭是油支撐球窩接頭,具有非接觸表面的靜壓軸承。使用HydraBall代替?zhèn)鹘y(tǒng)的桿端可以節省時間，并改善測試結果，因為不需要潤滑或調整。Hydraball是零背隙，零摩擦球形聯軸器，提供了非常堅硬的直接載荷路徑。HydraBalls是一種低噪音，經濟高效且?guī)缀鯚o需維護的,可替代傳統桿端。

HydraBalls的較小封裝和創新設計消除了與典型的U型夾銷組件相關的銷剪切。沒有高壓密封墊會磨損或引起摩擦而影響測試結果。HydraBall團隊在3,000 psi（205 Bar）時僅需要0.2 gpm（.751 lpm）的油。

Features特征

• Direct Load Path 直接加載路徑

• Eliminates Backlash 消除反沖

• Eliminates Friction 消除摩擦

• Easy to Install 易于安裝

• Offers flexibility on Installation 提供安裝靈活性

• Low Maintenance, Long Life Product 低維護，長壽命產品

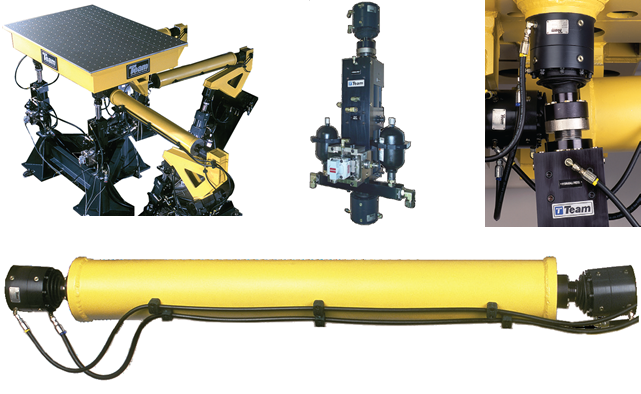

Applications應用領域

• MAST Tables MAST 臺

• Load Frames 加載框架

• Multi Axis Systems 多軸系統
