Pad Bearings 滑動靜壓軸承

Overview 總覽

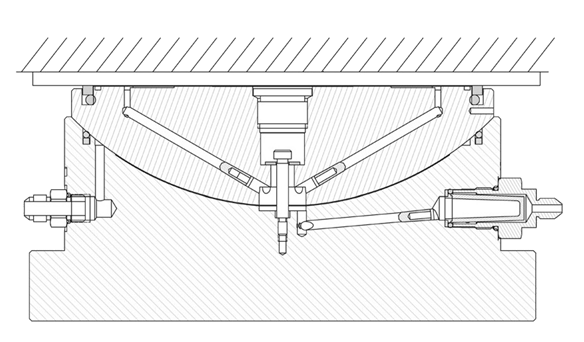

Team hydrostatic pad bearings are used to guide and restrain large packages during vibration testing. These unique bearings form a hydrostatic oil film between a working surface on the package or fixture, and the "pad" of the bearing surface interface. Team hydrostatic pad bearings are extremely stiff, providing the high level of restraint required to keep cross-axis motion to a minimum. When used in conjunction with a 3,000 psi (206 bar) oil supply, Team hydrostatic pad bearings are friction free and require almost no maintenance.

Specialty pad bearings with larger force ratings and greater angular rotations may be available depending upon your application requirements.

Team滑動靜壓墊軸承用于在振動測試期間引導和約束大型結構。這些獨特的軸承在結構或固定裝置工作表面上與軸承表面界面之間形成了像“墊”一樣的靜液壓油膜。Team靜壓墊軸承**堅硬，可提供*高的約束力，可將橫軸運動保持在*低水平。與3000 psi（206 bar）的供油量配合使用時，Team靜壓墊軸承是無摩擦的，幾乎不需要維護。

根據您的應用需求，可以提供具有更大額定力和更大角度旋轉的特種軸承。

Features 特征

• Two Hydrostatic Bearing Surfaces Each 兩個靜壓軸承表面

• High Dynamic Load Support 高動態(tài)負載支持

• Self-Aligning 自對準

• High Moment Constraint   高力矩約束*

• Friction Free and Maintenance Free 免摩擦和免維護**

*When used in pairs and properly aligned 成對使用并正確對齊時

**When oil is maintained to ISO 15-13-10 Standard 當油保持在ISO 15-13-10標準時

Applications 應用領域

• Slip Tables 滑臺

• Guided Head Expanders 引導式頭部擴張器

• MAST Systems MAST系統(tǒng)
