T-Film Slip Tables T膜超高傾覆力矩水平滑臺

Overview 總覽

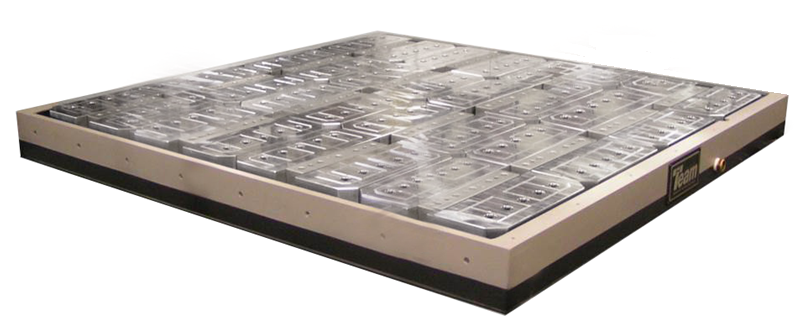

Team's system offers the rugged overturning moment capacity of the Team hydrostatic bearings combined with the full low pressure oil support of a granite or journal bearing oil film type slip table. This table system is assembled from a number of modular T-Film bearings. Each bearing measures 12" x 12" (300mm x 300mm) and allows the table to be configured to the customer's test article size and load requirements. The use of multiple bearings to completely support and guide the slip plate will offer excellent dynamic stability and damping for better test results. The design of the T-Film bearing provides a direct load path from the slip plate to the base, and is much more rigid than other guidance systems.

With a standard stroke limit of 2.5 inches (62.5 mm) and available stroke of up to 12 inches (300mm), Team T-film bearings will work with all modern long stroke shaker systems.

Team公司的軸承系統提供了Team靜液壓軸承的堅固的傾覆力矩能力，并結合了花崗巖或軸頸軸承油膜式滑臺的全低壓機油支撐。該工作臺系統由許多模塊化T膜軸承組裝而成。每個軸承的尺寸為12“ x 12”（300mm x 300mm），并允許將工作臺配置為滿足客戶的測試物品尺寸和負載要求。使用多個軸承完全支持和引導防滑板將提供良好的動態穩定性和阻尼，確保更好的測試結果。T-Film軸承的設計提供了從滑板到基座的直接載荷路徑，并且比其他導向系統堅固得多。

Team T膜軸承的標準行程為2.5英寸（62.5毫米），可用行程**為12英寸（300毫米），可與所有現代長沖程振動臺系統配合使用。

Features 特征

• Very high dynamic load capacity *高的動態負載能力

• Excellent cross-axis control 出色的橫軸控制

• Outstanding dynamic stiffness 出色的動態剛度

• Multiple load carrying bearings 多負荷軸承

• Low pressure oil system 低壓油系統

• Team hydrostatic bearing design Team靜壓軸承設計

• Easy to switch to smaller slip plate Applications 易于切換到較小的滑板應用

Applications 應用領域

• Electronic component testing 電子元件測試

• Thermal + vibration with large fixtures 使用大型夾具的熱環境和振動測試

• Long stroke low frequency testing 長行程低頻測試

• Large cabinet testing 大柜體測試

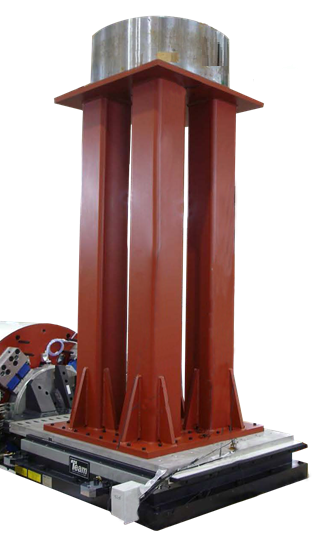

• Satellite testing w 3m x 3m Table 衛星測試，帶3m x 3m工作臺

• High CG test articles 高CG測試試件

• Mil STD testing to 2000 Hz   Mil STD測試至2000 Hz
