V8 and T8 Bearings V8/T8水平滑動靜壓軸承

Overview 總覽

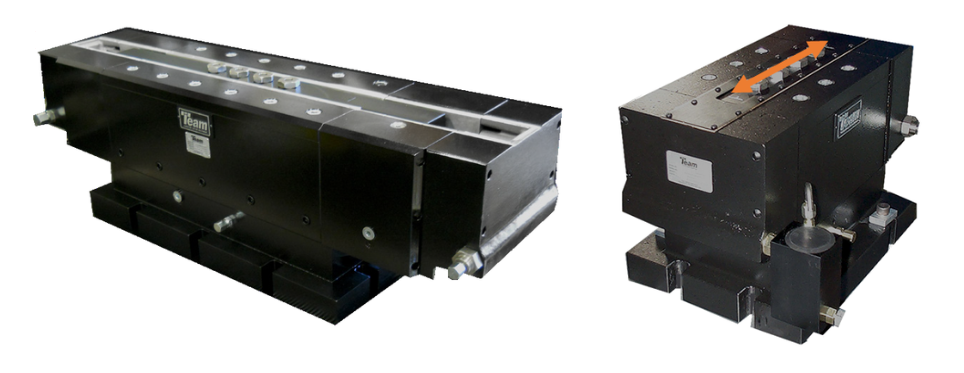

The V-8 and T-8 Hydrostatic Bearings are Team Corporation's most popular stand-alone bearings. Hydrostatic bearings are supported by a thin film of oil and have non-contacting surfaces providing zero friction, and low noise. The V-8 and T-8 are easy to use, cost-effective, and virtually maintenance-free. The base of each bearing features an "air pad" to facilitate movement and alignment. A filter on the inlet line assures that only clean oil reaches the bearing. Each bearing can carry as much as 10,000 lbs (4535 kg) of vertical load capacity, so most test packages can be accommodated with 4 or 6 bearings.

T-8 and V-8 bearings are designed for use with electrodynamic and servohydraulic shakers with a maximum 2 in. (50mm) of stroke.

V-8和T-8靜壓軸承是Team Corporation公司*受歡迎的獨立軸承。靜壓軸承由油膜支撐，并具有非接觸表面，可提供零摩擦和低噪音。V-8和T-8易于使用，具有成本效益且幾乎無需維護。每個軸承的底部都有一個“氣墊”，以方便移動和對齊。進口管路上的過濾器可確保只有干凈的油才能到達軸承。每個軸承可承受多達10,000磅（4535千克）的垂直載荷，因此大多數測試包可容納4或6個軸承。

T-8和V-8軸承設計用于**行程為2英寸（50毫米）的電動和伺服液壓振動器。

Features 特征

• * bearing system available. *堅固的軸承系統。

• Easily stored when not in use. 不使用時易于存放。

• Air pad for ease of movement and alignment 氣墊，便于移動和對齊

• Low-maintenance 低維護

• 2.5 inch (63.5 mm) stroke 行程2.5英寸（63.5毫米）

• 10,000 lb (44.5 kN) vertical load 10,000磅（44.5 kN）垂直載荷

Applications 應用領域

• Slip Table Expansion Outriggers 滑臺擴展支腿

• Guidance of Heavy or Oversized Test Specimens 重型或超大型試樣的導向

• Create Custom Slip Table for Heavy Test Articles 為重型測試試件創建自定義滑動臺面

• Support Oversize Horizontal Fixtures 支持超大水平夾具
