Subsidiary Shock Test System 輔助沖擊測試系統

Overview 總覽

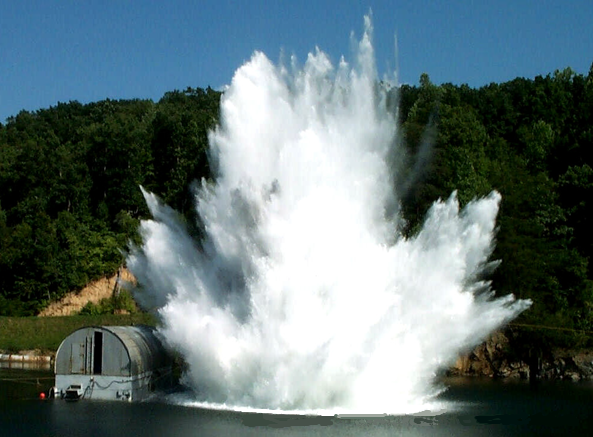

Team's Subsidiary Shock Test System (SSTS) is able to reproduce the entire acceleration time-history resulting from detonation of the test charge as described in MIL-S-901D. This includes the initial shock pulse from the detonation and the "bubble pulse" that follows in approximately 650 msec. The SSTS has also shown the capability to reproduce the decaying sinusoid that is sometimes measured in the frequency band centered around 60 Hz.

Team公司的輔助沖擊測試系統（SSTS）能夠再現MIL-S-901D中要求的由試驗裝藥爆炸引起的整個加速時間歷史。包括爆炸的初始沖擊脈沖和隨后大約650毫秒的“氣泡脈沖”。SSTS還可用以再現衰減的正弦曲線沖擊的能力，該曲線有時在以60 Hz為中心的頻帶中測量。

Features 特征

• Replication of Measured Environment Required by MIL-S-901D 復現MIL-S-901D所需的測量環境

• High Force Capability According to Your Requirements 根據要求需要具有強沖擊力測試的場合

• Velocity of 120 ips (3.07 m/sec) 速度為120 ips（3.07 m / sec）

• Team Customized HDRS Software 特制的HDRS軟件

• Reliable Voice Coil Driven Team Servohydraulic Actuator 可靠的音圈驅動伺服液壓作動器

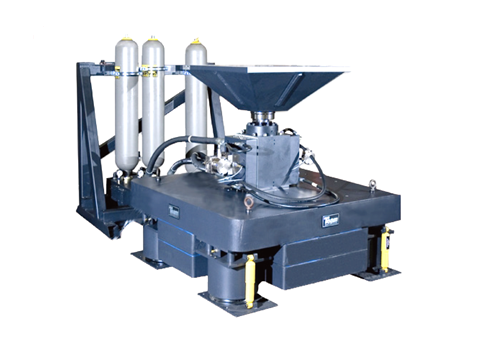

• Assembled as Single Integrated Vertical / Horizontal System 可配置為單個集成垂直/水平系統

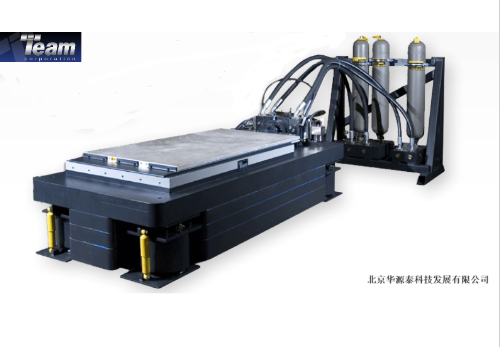

• Available as Separated Vertical / Horizontal System 可作配置為分離的垂直/水平系統

Applications 應用領域

• MIL-S-901D Testing of COTS Equipment   MIL-S-901D COTS設備測試

• NAVSEA UERD Electronics Development and Qualification   NAVSEA UERD　電子開發和資格認證
