LCS-48 Package Test System 包裝測試系統

Overview 總覽

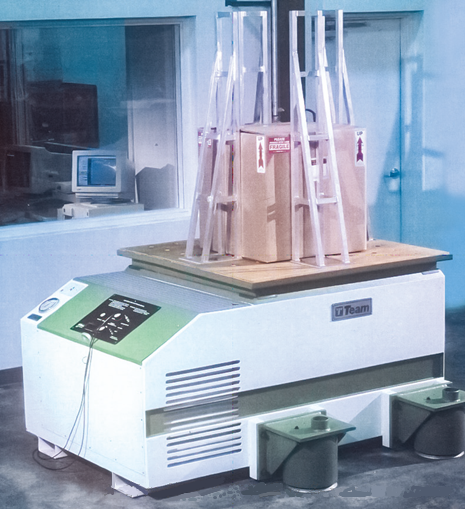

The LCS-48 is a compact, self-contained unit with a 1.2m (48") square vibration table. The system is exceptionally quiet and does not require any additional utilities, such as water for cooling, or external hydraulic supplies. The integral hydraulic supply is an efficient, air-cooled, variable volume hydraulic pump that allows the electric motor to work in exact proportion to the system needs, thereby reducing electrical consumption.

Team servo hydraulic vibration test systems offer versatile and cost effective testing solutions for the transportation and packaging industry. To meet the transportation and packaging tests identified in the ASTM, ISTA and IEC specifications, Team can offer either the LCS-48 Package Test System or custom designed solutions.

LCS-48是一個緊湊的獨立式設備，帶有1.2m（48"）方形振動臺面。該系統**安靜，不需要任何其他工具，例如冷卻水或外部液壓系統。液壓供應是一種高效的風冷可變容量液壓泵，它可使電動機按照系統需求精確地工作，從而減少了電力消耗。

Team伺服液壓振動測試系統為運輸和包裝行業提供了多功能且具有成本效益的測試解決方案。為了滿足ASTM，ISTA和IEC規范中確定的運輸和包裝測試，Team可以提供LCS-48包裝測試系統或定制設計的解決方案。

Features 特征

• Completely Self Contained Unit 完全獨立的單位

• Air Cooled- Hydraulic Pump Motor, no water required 風冷-液壓泵馬達，無需水

• Quiet - 72 dB at 6 feet (2 meters) 安靜-6英尺（2米）時為72 dB

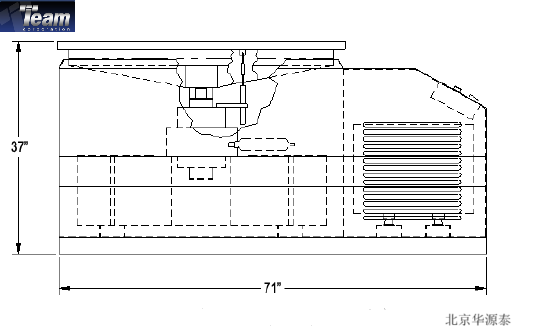

• Compact - 48” x 72” (1.2m x 1.8m) footprint 　緊湊-尺寸為48英寸x 72英寸（1.2mx 1.8m）

• Large Table Working Area　48” x 48” (1.2m x 1.2m) 大臺面工作區

• High Performance - 2” (50mm) stroke and up to 200 Hz frequency range　高性能-2英寸（50毫米）行程，*高200 Hz頻率范圍

• Sine and Random Testing　正弦和隨機測試

• ASTM, ISTA and IEC Capability ASTM，ISTA和IEC能力

Applications 應用領域

• Transporation and package testing運輸和包裝測試

•
