Horizontal Vibration System   水平振動系統

Overview 總覽

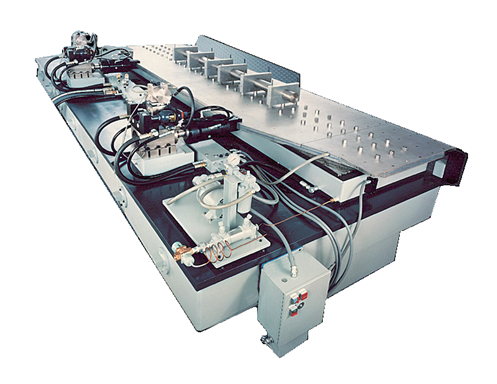

Team Corporation's Horizontal vibration test system is a high performance, versatile, and cost effective testing system. The Team system has been developed specifically for vibration testing and takes advantage of the T-Film™ Slip Table for horizontal test article guidance and support.

With the modular line of components, Team can provide you with a system that is best tailored to your test requirements. The actuator force, stroke and velocity are optimized to provide the highest frequency response within your budget constraints.

Team horizontal systems are designed to work with almost any off the shelf controller and offer the full spectrum of sine, random, sine on random, random on random, or resonant search and dwell control.

Team Corporation的水平振動測試系統是一種高性能，多功能且經濟高效的測試系統。Team系統是專門為振動測試而開發的，并利用T-Film™滑臺為水平測試物品提供導向和支持。借助模塊化的組件系列，Team可以為您提供*適合您的測試要求的系統。執行器的力，行程和速度經過優化，可在您的預算限制內提供*高的頻率響應。

Team水平系統旨在與幾乎所有現成的控制器一起使用，并提供正弦，隨機，正弦隨機，隨機隨機或共振搜索和駐留控制的全頻譜。

Features 特征

• Modular Bearing Design for Flexible Sizing Requirements 模塊化軸承設計滿足靈活的尺寸要求

• Integrated Zero Wear T-Film™ Bearings   集成零磨損T-Film™軸承*

• Overturning Moment Measured In Millions Of lb-in 傾覆力矩，以百萬磅英寸為單位

• High Load Capacity and Dynamic Stiffness 高負載能力和動態剛度

• Maintenance Free* 免維護*

• Available Drive Adapter For Use with All ED Shakers 適用于所有ED振動器的驅動器適配器

• Available Air Isolated Laminated Steel Reaction Mass   可用空氣隔離疊層鋼反應質量

• Available Thermal Barrier For Use In Environmental Chambers 適用于環境箱的可用熱障

• Available Hi-Yaw Control Bearings for Low Cross Axis Control 可用的偏航控制軸承用于低橫軸控制

• *When oil is maintained to ISO 15-13-10 standards *當油保持ISO 15-13-10標準時

Applications 應用領域

• Electronic Component Testing 電子元件測試

• Tall, High Center of Gravity Test Objects 高，重心高的測試對象

• Transportation Canister Testing 運輸罐測試

• Large Cabinet Testing 大型櫥柜測試

• Thermal + Vibration Testing With Large Fixtures 大型夾具的熱和振動測試

• Long Stroke, Low Frequency Testing 長行程，低頻測試

• Satellite Testing With 10” x 10” (3M x 3M) Table 使用10“ x 10”（3M x 3M）工作臺進行衛星測試

• Mil STD Testing to 2000Hz Mil STD測試至2000Hz
