PDT 80M 跌落試驗機

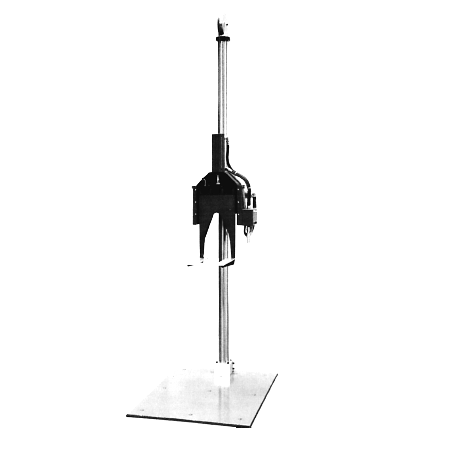

產品或包裝在運輸過程中會經歷很多的沖擊或跌落事件，包裝是否能有效的保護好產品，能緩沖多少沖擊能量？使用Lansmont跌落測試系統，可用于預裝運測試，用于檢驗包裝設計，優化防護包裝解決方案。PDT 80M是Lansmont經濟型跌落試驗機，PDT 80M結合了精確定位技術與快速充氣技術，但它不配備電機提升定位系統，而是通過手動定位。PDT80M獨有的反平衡組件使跌落高度的設定既方便又容易。系統支持80.kg公斤負載，通過腳踏開關來控制跌落。

參考標準

GB/T 4857.5-1992 包裝 運輸包裝件 跌落試驗方法

ASTM D5276 - 98(2017) Standard Test Method for Drop Test of Loaded Containers by Free Fall

ISO 2248-1985 包裝 滿裝的運輸包裝 墜落垂直沖擊試驗

DIN EN 22248-1993 包裝.滿裝的運輸包裝.墜落垂直沖擊試驗

產品特點 Features Highlights:

1.  High-velocity pneumatic cylinder, precision cam design and unique brake system allow extremely accurate, flat drop testing that exceeds industry standards, such as ASTM D5276.

高速氣動氣缸，精密凸輪設計和獨特的制動系統，產生**精確的平面跌落測試，指標超過行業標準，如ASTM D5276。

2.  Footswitch operation for triggering and resetting the platen.

通過腳踏開關啟動和復位平臺。

3.  Precision cam and bearing design for producing flat drops.

精密凸輪和軸承設計，產生精確平面跌落。

4.  Counter-balance assembly to assist with the vertical positioning of the drop assembly.

反平衡裝置協助跌落試驗機，跌落高度快速定位。

5.  Customer service throughout the world.

遍布世界的客戶服務機構。

性能指標   Specifications :

1.** Package Weight *大包裝質量:

標準托盤 177 lbs. (80.0 kg) ,擴展托盤150 lbs. (68.0 kg)

2.** Package Size *大包裝尺寸:

標準托盤 24.0 in. (61.0 cm) 前后,擴展托盤36.0 in. (91.5 cm) 前后

3.Drop Height Range 跌落高度范圍:

標準托盤 12.0 - 36.0 in. (30.5 - 91.5 cm), 1.00 in. (2.54 cm) 增量

36.0 - 42.0 in. (91.5 - 107 cm), 2.00 in. (5.08 cm) increments

35.0 – 71.0 in. (88.9 – 180 cm) and 36.0 – 72.0 in. (91.5 – 183 cm), 6.0 in. (15.2 cm)增量

擴展托盤 18.0 - 36.0 in. (45.7 - 91.5 cm), 1.00 in. (2.54 cm)增量

36.0 - 42.0 in. (91.5 - 107 cm), 2.00 in. (5.08 cm)增量

35.0 – 71.0 in. (88.9 – 180 cm) and 36.0 – 72.0 in. (91.5 – 183 cm), 6.0 in. (15.2 cm)增量

4.每個跌落試驗機裝運前跌落精度均校準到+/-2度內

產品細節 Details:

Θ Foot Switch   腳踏開關:

The drop mechanism of the PDT 80M Drop Tester is operated via a footswitch. When the footswitch is pressed, the drop leaf is activated and performs a drop test. After the footswitch is released, the drop leaf will reset. The footswitch is protected inside a metal guard enclosure to avoid accidental activation

PDT 80M通過腳踏開關操作。腳踏開關被按下時,翻轉托架被激活并執行跌落測試;腳踏開關釋放后,翻轉托架復位。腳踏開關在一個金屬外殼保護罩中,以避免意外激活。

Θ Precision Cam Design 精密凸輪:

Lansmont’s precision cam and bearings design is a key machine feature for producing a flat drop event. When the drop tester is armed and fired, the drop leaf first moves straight down faster than the package and then swings out of the way in time to clear the path for the package’s free fall.

Lansmont的精密凸輪和軸承設計是產品平面跌落的重要保障。當跌落測試啟動時, 活動翻板快速下降并及時向后翻轉，保證產品按自由落體無障礙下跌。

Θ Counter-Balance Assembly 平衡組建:

The drop height of the PDT 80M Drop Tester is adjusted manually. To alleviate the weight of the drop assembly when making height adjustments, the PDT 80M incorporates a unique counter–balance assembly. This feature makes the height adjustment process simple and easy for any test engineer.

PDT 80M通過手動方式調整跌落高度，為解決大質量產品手動調整高度的困難，采用獨特的質量平衡組件設計，使跌落高度的設定既方便又容易。

產品選項 Options:

Θ Edge and Corner Holding Fixture 邊角固定器:

The optional flexible structure mounts to the drop tester and holds packages in position prior to the drop event when performing edge or corner drops.

邊角固定器用來控制測試中大型樣品的跌落方向。該組件可以根據用戶的需求進行定制。

Θ Extended Platen 擴展托架:

If your package dimensions are too big for the standard platen, we offer an optional extended platen to accommodate larger package sizes. The extended platen holds packages with a front-to-back dimension of up to 36 inches.

如果包尺寸對于標準的平臺來說太大，我們提供一個可選的擴展平臺來容納更大的包大小。擴展的平臺*高可達36英寸的前后尺寸。

Θ Slotted and Oversized Baseplates開槽大基座:

For customers that need to test to drop heights below 12 inches, we have a slotted baseplate option and foundation kit that allows for drops as low as 1 inch.

Larger packages may necessitate a larger impact surface. We offer an oversized baseplate which widens the impact area from the standard 36 inches to 60 inches.

對于跌落高度較低的測試，可配置開槽基座。開槽基座選項可以讓跌落高度低到1英寸。較大的包裝可能需要*大的撞擊面。我們提供了一個超大的基板，沖擊面積從標準的36英寸擴大到60英寸。

Θ Test Partner Data Acquisition采集分析:

Lansmont Test Partner sets the standard for data acquisition systems used for laboratory impact testing. Test Partner is a powerful combination of software and hardware specifically tailored to capture and analyze mechanical shock, drop, and impact events.

Lansmont TP3/TP4 是一種強大的軟件和硬件組合，專門為捕捉和分析沖擊、跌落和其它瞬態沖擊事件而量身定制。它可以同時采集多達512個傳感器的數據,分析包括加速度、應變、溫度、壓力等量綱的信號。

產品應用 Applications:

Controlled Orientation 跌落方向控制：

Test procedures and industry standards specify the requirement for controlled orientation drops, resulting in test sample impacts on predetermined faces, corners and edges. Lansmont Precision Drop Testers are built in accordance with ASTM D5276 requirements.

按照行業標準測試程序，跌落測試樣本對預定沖擊面執行面、角和邊的沖擊測試。Lansmont精密跌落測試儀滿足ASTM D5276等國際和國內標準，執行標準規定面、角、邊、測試。

Hazard Drops 障礙跌落

In reality, not all items are dropped on flat, laboratory-style floors. In fact, some small parcel distribution tests require drops to occur on a predetermined hazard.

并不是所有的物品跌落都在平整的或者像實驗室一樣的地板上，一些客戶在用Lansmont跌落試驗機測試小型的包裹跌落時，會在底板放置阻礙塊，模擬更真實的環境。

Product Drops產品跌落

Lansmont customers use drop testers to perform bare product drop testing to simulate in-use events that may occur once out of their protective packaging and in the hands of the consumer.

Lansmont客戶使用跌落試驗機來執行產品裸露跌落測試，以模擬在沒有保護包裝或在消費者手滑落時可能發生的跌落事件。

Extended Height 擴展高度

Dangerous goods packages undergo severe drop tests during certification testing. Other high performance products and packages also need to survive high energy impacts. Lansmont offers extended height drop testers to satisfy these testing applications. Custom drop height options are available to extend your machine drop height range.

在認證測試期間，危險貨物包裝會經歷更嚴格的跌落測試；其它高性能的產品和包裝也需要抵抗更高能耗的沖擊，Lansmont提供了可擴展高度選件來滿足這些測試應用要求。
