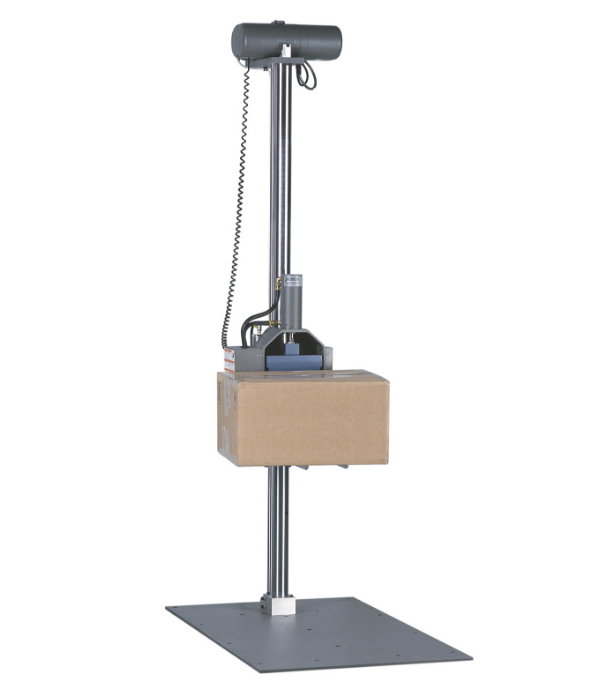

PDT 80 精密跌落試驗機

產品或包裝在運輸過程中會經歷很多的沖擊或跌落事件，包裝是否能有效的保護好產品，能緩沖多少沖擊能量？使用Lansmont跌落測試系統，可用于預裝運測試，用于檢驗包裝設計，優化防護包裝解決方案。PDT-80型 精密跌落試驗機是美國藍氏Lansmont公司****的高性價比跌落試驗系統。其獨特設計**結合了精密導向系統與高速氣動裝置，以滿足高精度跌落試驗的要求。系統采用精密步進電機，用于提升和定位被測包裝，用戶可方便的裝載試件并將其定位到目標高度。PDT-80配備了手持控制器，可方便的設置跌落高度、提升和定位托架和包裝，并提供了“高度自動復位”功能，以便用戶在裝載試件后自動將托架返回至設定高度。內置LCD顯示器用于顯示當前高度和已設置高度。用戶還可設置采用標配的腳踏開關進行跌落試驗。

參考標準

GB/T 4857.5-1992 包裝 運輸包裝件 跌落試驗方法

ASTM D5276 - 98(2017) Standard Test Method for Drop Test of Loaded Containers by Free Fall

ISO 2248-1985 包裝 滿裝的運輸包裝 墜落垂直沖擊試驗

DIN EN 22248-1993 包裝.滿裝的運輸包裝.墜落垂直沖擊試驗

產品特點 Features Highlights:

1.  High-velocity pneumatic cylinder, precision cam design and unique brake system allow extremely accurate, flat drop testing that exceeds industry standards, such as ASTM D5276.

高速氣動氣缸，精密凸輪設計和獨特的制動系統，產生**精確的平面跌落測試，指標超過行業標準，如ASTM D5276。

2.  Handheld control, allowing for positioning of the drop assembly, triggering of the drop sequence, and resetting of the drop platen.

手持控制器，設置跌落位置，啟動跌落，復位托盤。

3.  Electric hoist for positioning drop assembly and lifting heavy packages.

精密電機用于托舉和定位托盤。

4.  Footswitch, providing an alternative method of operation for triggering and resetting of the platen.

也提供腳踏開關來啟動和復位平臺。

5.  Precision cam and bearing design for producing flat drops.

精密凸輪和軸承設計，產生精確平面跌落。

6.  Customer service throughout the world.

遍布世界的客戶服務機構。

性能指標   Specifications :

1.Package Weight 包裝質量:

標準托盤 177 lbs. (80.0 kg) ,擴展托盤150 lbs. (68.0 kg)

2.Package Size 包裝尺寸:

標準托盤 24.0 in. (61.0 cm) 前后,擴展托盤36.0 in. (91.5 cm) 前后

3.Drop Height Range 跌落高度范圍:

標準托盤 12.0 - 72.0 in. (30.5 - 183 cm), 1.00 in. (2.54 cm) 增量

開槽底板 1.0 - 72.0 in. (2.5 - 183 cm), 1.00 in. (2.54 cm) 增量

擴展托盤 18.0 - 72.0 in. (45.7 - 183 cm), 1.00 in. (2.54 cm)增量

*其它指標均可定制

產品細節 Details:

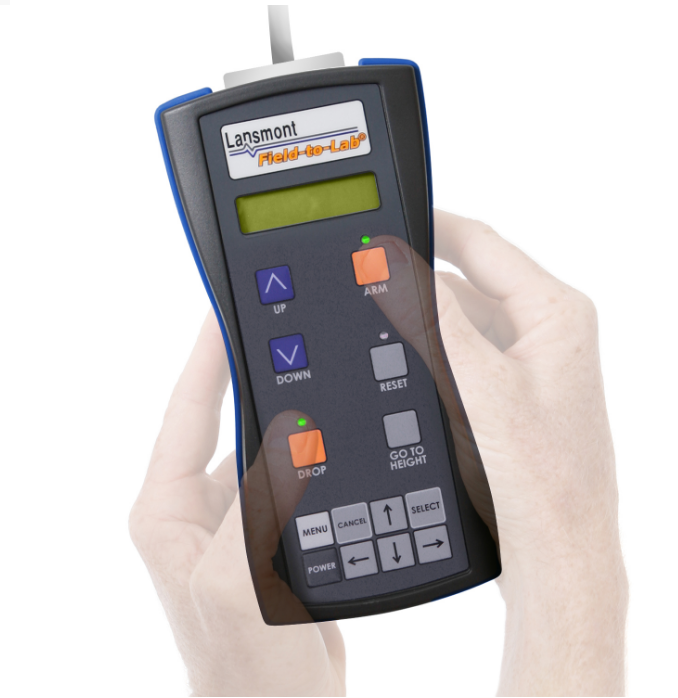

Θ Handheld Controller 手持控制器:

The rugged handheld controller provides all necessary functionality for using Lansmont’s Precision Drop Test Systems. The user can select the desired drop height via the controller and the machine will automatically move the drop platen to this height setting. No tape measure or manual adjustment is needed. All important information about the drop tester or the current settings is easily read on the LED screen on the front of the controller pendant.

使用手持控制器輕松設定跌落高度,精密提升電機自動定位高度,通過LED顯示器讀取各種所需信息

Θ Precision Cam Design 精密凸輪:

Lansmont’s precision cam and bearings design is a key machine feature for producing a flat drop event. When the drop tester is armed and fired, the drop leaf first moves straight down faster than the package and then swings out of the way in time to clear the path for the package’s free fall.

Lansmont的精密凸輪和軸承設計是產品平面跌落的重要保障。當跌落測試啟動時, 活動翻板快速下降并及時向后翻轉，保證產品按自由落體無障礙下跌。

Θ Electric Hoist 精密提升電機:

If you are changing drop heights frequently or testing heavier packages, it pays to have a lifting mechanism to keep you from having to do all of this work manually. The PDT 80 features an electric hoist for raising and lowering the drop leaf assembly and test package.

對于頻繁調整跌落高度或者測量包裝比較重的場合，使用自動提升電機將大大提高測試效率，減輕人員負擔， PDT80 提示電機能輕松提升或放下測試設備。

產品選項 Options:

Θ Edge and Corner Holding Fixture 邊角固定器:

The optional flexible structure mounts to the drop tester and holds packages in position prior to the drop event when performing edge or corner drops.

邊角固定器用來控制測試中大型樣品的跌落方向。該組件可以根據用戶的需求進行定制。

Θ Extended Platen 擴展托架:

If your package dimensions are too big for the standard platen, we offer an optional extended platen to accommodate larger package sizes. The extended platen holds packages with a front-to-back dimension of up to 36 inches.

如果包尺寸對于標準的平臺來說太大，我們提供一個可選的擴展平臺來容納更大的包大小。擴展的平臺*高可達36英寸的前后尺寸。

Θ Slotted and Oversized Baseplates開槽大基座:

For customers that need to test to drop heights below 12 inches, we have a slotted baseplate option and foundation kit that allows for drops as low as 1 inch.

Larger packages may necessitate a larger impact surface. We offer an oversized baseplate which widens the impact area from the standard 36 inches to 60 inches.

對于跌落高度較低的測試，可配置開槽基座。開槽基座選項可以讓跌落高度低到1英寸。較大的包裝可能需要*大的撞擊面,我們提供了一個超大的基板，沖擊面積從標準的36英寸擴大到60英寸。

Θ Test Partner Data Acquisition采集分析:

Lansmont Test Partner sets the standard for data acquisition systems used for laboratory impact testing. Test Partner is a powerful combination of software and hardware specifically tailored to capture and analyze mechanical shock, drop, and impact events.

Lansmont TP3/TP4 是一種強大的軟件和硬件組合，專門為捕捉和分析沖擊、跌落和其它瞬態沖擊事件而量身定制。它可以同時采集多達512個傳感器的數據,分析包括加速度、應變、溫度、壓力等量綱的信號。

產品應用 Applications:

Controlled Orientation 跌落方向控制：

Test procedures and industry standards specify the requirement for controlled orientation drops, resulting in test sample impacts on predetermined faces, corners and edges. Lansmont Precision Drop Testers are built in accordance with ASTM D5276 requirements.

按照行業標準測試程序，跌落測試樣本對預定沖擊面執行面、角和邊的沖擊測試。Lansmont精密跌落測試儀滿足ASTM D5276等國際和國內標準，執行標準規定面、角、邊、測試。

Hazard Drops 障礙跌落

In reality, not all items are dropped on flat, laboratory-style floors. In fact, some small parcel distribution tests require drops to occur on a predetermined hazard.

并不是所有的物品跌落都在平整的或者像實驗室一樣的地板上，一些客戶在用Lansmont跌落試驗機測試小型的包裹跌落時，會在底板放置阻礙塊，模擬更真實的環境。

Product Drops產品跌落

Lansmont customers use drop testers to perform bare product drop testing to simulate in-use events that may occur once out of their protective packaging and in the hands of the consumer.

Lansmont客戶使用跌落試驗機來執行產品裸露跌落測試，以模擬在沒有保護包裝或在消費者手滑落時可能發生的跌落事件。

Extended Height 擴展高度

Dangerous goods packages undergo severe drop tests during certification testing. Other high performance products and packages also need to survive high energy impacts. Lansmont offers extended height drop testers to satisfy these testing applications. Custom drop height options are available to extend your machine drop height range.

在認證測試期間，危險貨物包裝會經歷更嚴格的跌落測試；其它高性能的產品和包裝也需要抵抗更高能耗的沖擊，Lansmont提供了可擴展高度選件來滿足這些測試應用要求。
