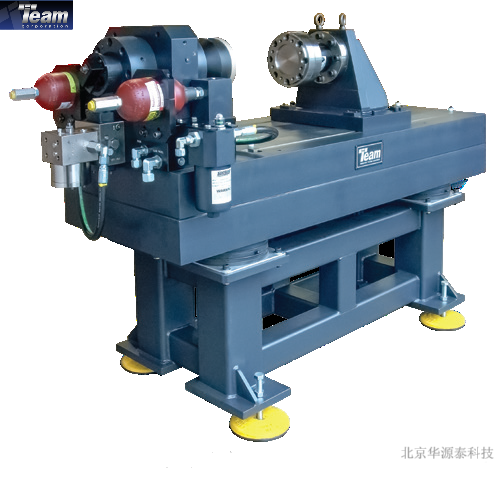

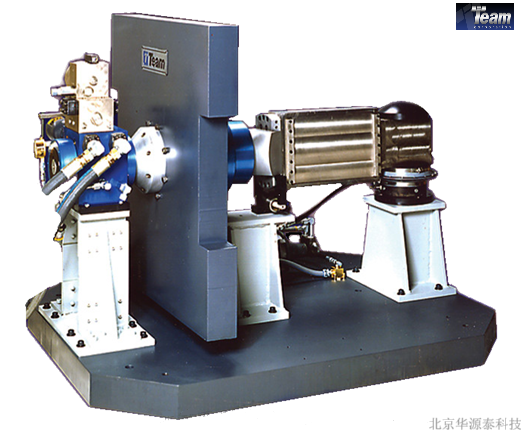

R-10 Series Rotary Actuators   R-10系列高頻旋轉執行器，擺動油缸

Overview 總覽

Team Corporation's R-10 series are heavy-duty, robust, fatigue rated actuators that meets the requirements for many product applications in the automotive industry including coupling, damper, driveshaft axle and material testing. The R-10 series rotary actuators were designed for fatigue testing wherever high torque output with restricted rotational travel is required. The R-10 series has a total rotational travel of 100 degrees (+/- 50 degrees). One primary feature of the R-10 series is that they incorporate hydrostatic bearings, which eliminate mechanical wear caused by side or thrust loads - thus ensuring longer life.

Team Corporation的R-10系列是重型，堅固，耐用的執行器，可滿足汽車行業許多產品應用的要求，包括聯軸器，減震器，傳動軸和材料測試。R-10系列旋轉執行器設計用于需要高扭矩輸出且旋轉行程受限的疲勞測試。R-10系列的總旋轉行程為100度（+/- 50度）。R-10系列的一個主要特點是它們裝有靜壓軸承，從而消除了由側向載荷或推力載荷引起的機械磨損，從而確保了更長的使用壽命。

Features 特征

• Dynamic Torque Output from 5,000 to 200,000 lb-in (564 - 22,596 N-m) 動態扭矩輸出范圍從5,000到200,000 lb-in（564 - 22,596 Nm）

• Heavy duty - fatigue rated 重型-疲勞等級

• Zero backlash due to locking taper 鎖定錐度可實現零反沖

• Hydrostatic bearings eliminate mechanical wear and ensure longer life 靜壓軸承消除了機械磨損并確保了更長的使用壽命

• Rotational travel 100 degrees (+/- 50 degrees) 旋轉行程100度（+/- 50度）

• Integrated RVDT 集成式RVDT

Applications應用領域

• Automotive damper testing 汽車減震器測試

• Automotive FEAD testing 汽車FEAD測試

• Automotive component test of axles, drive shafts & couplings 車軸，傳動軸和聯軸器等汽車部件測試

• All rotational or torque with limited displacement testing requirements 所有滿足位移限制要求的旋轉或扭矩測試

• Materials fatigue testing 材料疲勞測試
