美國Lansmont SAVER 3D15 物流快遞運輸環境記錄儀,海洋海運運輸低頻振動記錄,振動路譜生成,游樂園的游樂設施、航空航天飛行測試、鐵路車輛耦合沖擊,以及車輛碰撞測試(進口 蘭斯蒙特)

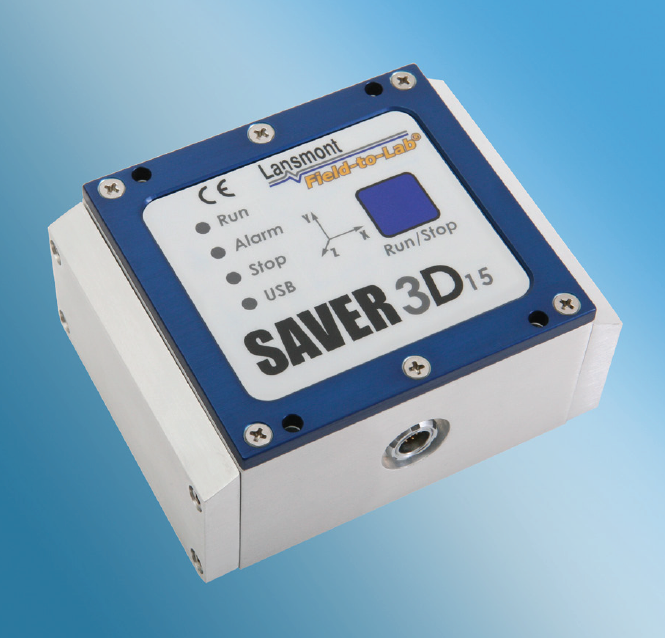

Saver 3D15運輸環境記錄儀由內部電池供電，內置三軸向MEMS 加速度傳感器，提供了直流響應能力（低頻響應**），特別適合低頻運輸環境的場合。

3D15運輸環境記錄儀使用9V鋰電池供電，可以不間斷的記錄長達15天的沖擊、振動、溫度和濕度數據，通過USB線連接計算機配置和讀取記錄儀數據。16位采樣分辨率允許您對動態環境數據進行精確的測量。3D15也可以和GPS模塊結合在一起使用。

產品指標 Specification:

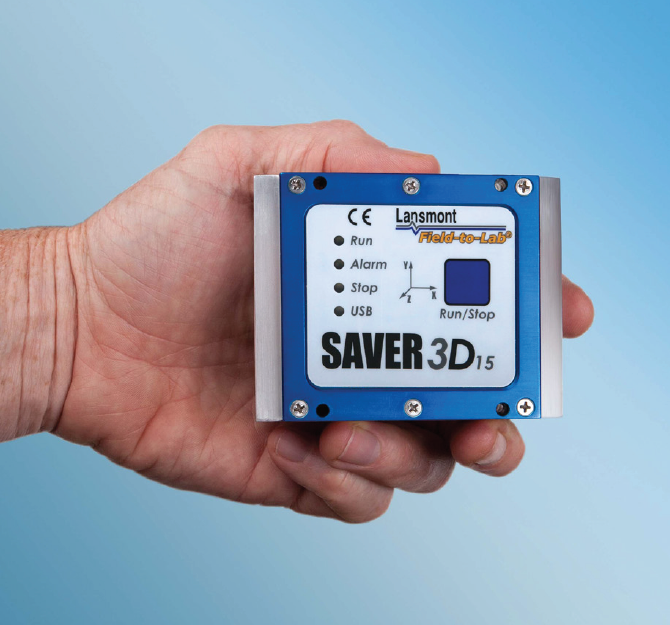

Envelope Size 產品尺寸:   3.7 x 2.9 x 1.7 in. (95 x 74 x 43 mm)

Weight 重量:   16.7 oz. (473 grams)

Acceleration Ranges 加速度量程:   5, 10, 20, 50 g (full scale)

Accelerometer Type 傳感器類型:   Triaxial MEMS 三軸 MEMS

Sampling Rates 采樣頻率:   50, 100, 200, 250, 500, 1000, 2500, and 5000 samples per second

A/D Conversion AD位數:   16-bit

Anti-Alias Filter 抗混濾波:   4-pole, low-pass Butterworth filter, 10, 20, 25, 50, 100, 200, 250 and 500 Hz. (cut-off frequency)

3-dB Frequency Response 頻率響應:   DC to filter setting

Temperature Measurement Range 溫度測量范圍:   -40° to 60°C (-40° to 140°F)

Humidity Measurement Range 濕度測量范圍:   5% to 95% RH, non-condensing

產品特性 Fatures:

Field-to-Lab®   現場到實驗室:

Use SaverXwareTM software to analyze data captured with SAVER instruments, and seamlessly create random vibration test profiles that can be easily imported into Lansmont TouchTest Vibration Controllers for immediate use. Only Lansmont offers this cross-platform integration.

使用配套軟件分析采集的數據,可生成隨機振動頻譜,頻譜數據直接導入到Lansmont

液壓振動臺控制系統中,實現實驗室復現路面振動.

15 Day battery Life 15天電池供電:

SAVERTM 3D15 is powered with user replaceable 9V lithium (or alkaline) batteries and provides continuous operation of the MEMS DC Response accelerometers in the field for up to 15 days

使用可替換的9V鋰(或堿性)電池供電,可供MEMS直流響應加速度計連續工作15天.

T/RH sensor   溫度/濕度傳感器:

In addition to dynamic measurements, your SAVERTM 3D15 will also capture temperature and relative humidity conditions. Internal sensors mounted to the back side of the SAVERTM 3D15 measure and record environmental conditions per the user-defined setup.

3D15同時提供環境溫度和相對濕度的測量,內部傳感器安裝在機箱側壁.

產品選項 Options:

External Battery Pack 外接電池:

For some recording applications, 15 days may not be enough recording time. Not a problem. Lansmont offers an External Battery Pack that extends the continuous operation time from 15 to 40 days.

如果15天內置供電時間不夠,Lansmont也提供外置供電組件，待機提高到40天.

Mounting Kits 安裝組件:

Mounting kits can make it easier to fix SAVERTM 3D15s to vehicles or structures. Kits include mounting plates and attachment hardware. If you are attaching to a ferrous surface, magnetic mounting kits are available.

使用安裝組件可以快速安裝Saver到車輛或結構中，如果是鐵質表面，還可以選擇磁性安裝組件

Data Analysis Center 數據分析服務:

Trust Lansmont data specialists to interpret your data and provide you with even greater confidence. Lansmont data specialists are experts at acquiring, analyzing and summarizing data; if you need help defining parameters or protocols, we can help.

如果您有需要，Lansmont數據專家可以幫助您分析總結你的測試數據，也可以幫助您設定測量參數條件

產品軟件 SaverXware：

Each SAVER purchase includes Lansmont’s SaverXwareTM, the easy-to-use software that communicates with the SAVER 3D15 for setup prior to recording — as well as data analysis, once you’ve collected some data. Data analysis features include drop heights, impacts, vehicle motion, vibration, and temperature and humidity cycles.

每個Saver記錄儀都配套Lansmont的SaverXware軟件，該軟件操作簡單，包括記錄前的測量設置及記錄后的數據分析,分析功能包括跌落高度、沖擊、車輛運動軌跡、振動、環境溫度和濕度等。

產品應用 Applications：

There are specific applications where DC recording capabilities are required to measure low frequency energy. For instance, amusement park rides, aerospace flight applications, rail-car coupling impacts, and vehicle crash testing all contain low frequency responses with long duration, constant acceleration time histories. The 3D15, with it’s MEMS DC Response accelerometers, is the right instrument to address those applications.

有一些特定的應用場合需要直流記錄功能來測量低頻能量。例如，游樂園的游樂設施、航空航天飛行測試、鐵路車輛耦合沖擊，以及車輛碰撞測試都包含了低頻率響應，波形持續時間比較長。3D15使用MEMS直流響應加速計，正是處理這些應用場合的合適工具。
