PDT 700 重型跌落試驗機

Lansmont PDT 700型跌落試驗機性能類似PDT 300，能測試大型的產品或包裹，*大負載可支持700kg，標準跌落高度支持到122cm，配置焊接鋼托架，精密步進電機提升系統，并配備手持控制器。下落過程開始后，托架加速垂直向下運動，未對被測包裝產生任何方向的外力作用，從而保證了完全的平面跌落。托架與位于基座內的特制液壓機構和橡膠相撞后能量被吸收，避免了出現反彈的情況。跌落高度可以在系統允許的跌落范圍內隨意設置。

參考標準

GB/T 4857.5-1992 包裝 運輸包裝件 跌落試驗方法

ASTM D5276 - 98(2017) Standard Test Method for Drop Test of Loaded Containers by Free Fall

ISO 2248-1985 包裝 滿裝的運輸包裝 墜落垂直沖擊試驗

DIN EN 22248-1993 包裝.滿裝的運輸包裝.墜落垂直沖擊試驗

產品特點 Features Highlights:

1. Spring-loaded pulley design helps to accelerate carriage downward, away from test item during a drop sequence.

彈簧式滑輪的設計有助于加速托架下降，在下降過程中遠離測試項

2. The system is designed and factory-verified to perform extremely accurate, flat drop testing that exceeds industry standards, such as ASTM D5276.

系統經過精心設計并執行嚴格出廠檢驗，保證執行精確測試、平面的跌落測試超過行業標準，如ASTM D5276

3. Handheld control, allowing for positioning of the drop assembly, triggering of the

drop sequence, and resetting of the drop platen.

手持控制器，設置跌落位置，啟動跌落，復位托盤

4. Edge & corner fixture, allowing controlled drop orientations.

使用邊角固定裝置，控制跌落方向

5. Electric hoist, providing automatic positioning of drop assembly.

電動電機提升并自動定位

6. Customer service throughout the world.

遍布世界的客戶服務機構

性能指標   Specifications :

Lansmont 重型跌落試驗機

Package Weight 包裝重量:

Standard carriage 1540 lbs. (700 kg) 標準托架

Extended carriage ：定制

Package Size (front-to-back) 包裝尺寸:

Standard carriage 79.5 in. (202 cm) 標準托架

Extended carriage ：定制

Drop Height Range 跌落高度:

Standard carriage 1 - 48 in. (2.5 - 122 cm) 標準托架

Extended carriage ：定制

*其它指標均可定制

產品細節 Details:

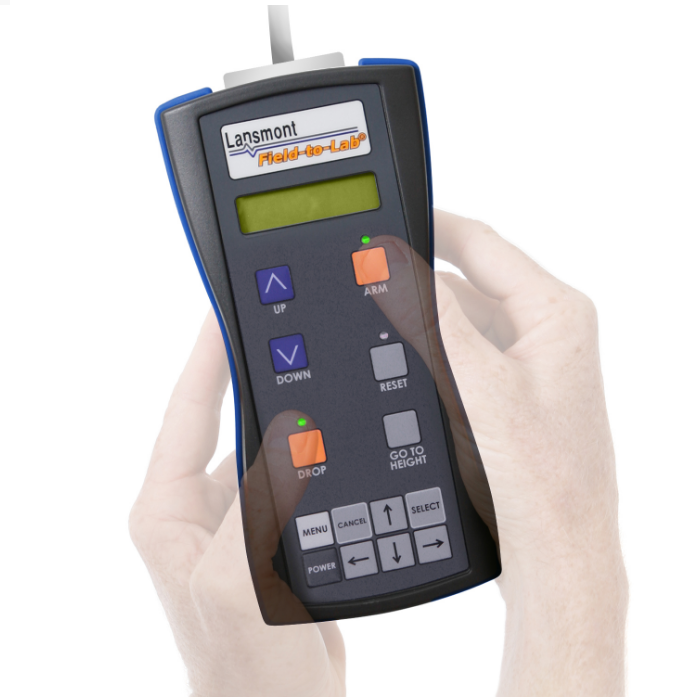

Handheld Controller 手持控制器:

The rugged handheld controller provides all necessary functionality for using Lansmont’s Precision Drop Test Systems. The user can select the desired drop height via the controller and the machine will automatically move the drop platen to this height setting. No tape measure or manual adjustment is needed. All important information about the drop tester or the current settings is easily read on the LED screen on the front of the controller pendant.

使用手持控制器輕松設定跌落高度,精密提升電機自動定位高度,通過LED顯示器讀取各種所需信息

Edge and Corner Holding Fixture 邊角固定器:

An Edge and Corner Holding fixture is included to assist with orienting large, bulky packages for testing. Oversized or custom E&C fixtures are available for special drop testing applications.

一個邊和角固定裝置，以幫助定位大型的、笨重的包裹。特殊的跌落測試應用可定制E&C裝置。

Electric Hoist 精密提升電機:

If you are changing drop heights frequently or testing heavier packages, it pays to have a lifting mechanism to keep you from having to do all of this work manually. The PDT 700 features an electric hoist for raising and lowering the drop leaf assembly and test package.

對于頻繁調整跌落高度或者測量包裝比較重的場合，使用自動提升電機將大大提高測試效率，減輕人員負擔， PDT700 提示電機能輕松提升或放下測試設備。

產品選項 Options:

Extended Carriages 擴展托架:

To accommodate testing of larger packages, drop carriages with extended length are available that may be better suited to your largest package size

為了適應更大的包裝測試要求，可以選擇更適合你的包裝大小的托架。

Steel Baseplates:

Steel Baseplates are available for the standard and extended carriage sizes.Baseplate dimensions vary depending on carriage size and impact area.

兩種沖擊基座可選：混凝土基座（標配）和鋼質基座（選件）。前者可嵌入試驗室地面，托架可直接落入基座的溝槽中，從而提供了左右無限制的碰撞面；我們將提供所有所需的硬件，包括澆鑄框架等，用戶僅需澆鑄混凝土即可。后者是一個精密加工的鋼質基座，可放置于地面之上，無須對地面進行修改，且方便移動。

Test Partner Data Acquisition采集分析:

Lansmont Test Partner sets the standard for data acquisition systems used for laboratory impact testing. Test Partner is a powerful combination of software and hardware specifically tailored to capture and analyze mechanical shock, drop, and impact events.

Lansmont TP3/TP4 是一種強大的軟件和硬件組合，專門為捕捉和分析沖擊、跌落和其它瞬態沖擊事件而量身定制。它可以同時采集多達512個傳感器的數據,分析包括加速度、應變、溫度、壓力等量綱的信號。
